Русский40ft Double-Wing Expandable Container House
40ft double-wing expandable container house with 72 m² of floor area, model-specific capacity, electrical and weight data to be confirmed against the final configuration. Suitable for larger accommodation, hospitality and project sourcing.
40ft Double-Wing Expandable Container House
The 40ft Double-Wing Expandable Container House expands to 11800 × 6220 × 2480 mm and provides 72 m² of floor area for 4–6 occupants. Folded dimensions are 11800 × 2200 × 2480 mm, with an approximate net weight of 5.5 tonnes and a standard electrical load of 12 kW. It is designed for larger accommodation, hospitality, government and project applications.
Product Description
The 40ft Double-Wing Expandable Container House expands to 72 m² and folds to 11800 × 2200 × 2480 mm for transport. It is suited to larger accommodation, hospitality, government and EPC projects, with a galvanized steel frame, insulated sandwich panels and configurable utility and interior systems.
Key Features
Compact Folded Design
Folds down to a slim profile for economical transport — lowers logistics cost and simplifies handling.
Double-Wing Expansion
Two wings unfold on-site to deliver a much larger usable interior than a standard container of the same length.
Flat Roof Design
Modern, clean exterior with efficient space usage and easy maintenance.
Durable Steel Frame
Frame and panel specifications can be reviewed with the supplier for the selected model.
Custom Interior Layout
Partitions, storage, kitchen, and bathroom zones can all be tailored to your project requirements.
Water & Electric Ready
Prepared wiring and plumbing interfaces for quick connection to local utility systems.
Customizable Exterior
Exterior finishes and configurations can be adapted to different market requirements.
Flexible Room Combo
Room, bathroom and kitchen layouts can be discussed based on the selected model and project requirements.
Shipping Planning
Loading plans can be reviewed with the supplier based on the selected size and project quantity.
Specifications
Basic Specifications | |
|---|---|
Model | 40ft Double-Wing Expandable Container House |
Expanded Dimensions (mm) | 11800 × 6220 × 2480 |
Internal Dimensions (mm) | 11220 × 6060 × 2200 |
Folded Dimensions (mm) | 11800 × 2200 × 2480 |
Floor Area | 72 m² |
Occupancy | 4–6 people |
Standard Electrical Load | 12 kW |
Approx. Net Weight | 5.5 tonnes |
Frame Structure | |
|---|---|
Main Frame | Fully galvanized steel |
Top Main Beam | 80 × 140 × 3.0 mm square tube |
Top Cross Beam | 3.0 mm bent component |
Bottom Main Beam | 80 × 140 × 3.0 mm square tube |
Bottom Cross Beam | 3.0 mm bent component |
Columns + Lifting Head | 3.0 mm bent component with 6 mm lifting-head liner |
Side Wing Top Frame | 40 × 80 × 1.5 mm P-shaped tube; 40 × 80 × 2.0 mm square tube; 60 × 80 × 2.0 mm square tube |
Side Wing Bottom Frame | 80 × 80 × 2.0 mm square tube; 70 × 80 × 1.2 mm recessed tube; 40 × 80 × 1.5 mm P-shaped tube |
Folding Hinges | 13 mm galvanized hinges |
Frame Coating | Electrostatic powder coating |
Roof and Wall Panels | |
|---|---|
External Central Roof | 1.0 mm container roof plate |
Roof and Ceiling Panels | 50 mm EPS sandwich panels |
Exterior Wall Panels | 75 mm sandwich panels; standard 10 kg/m³ EPS; rock wool, EPS and PU options; 0.35 mm color-coated steel on both sides |
Internal Partition Panels | 50 mm EPS sandwich panels |
Floor, Doors, Windows and Utilities | |
|---|---|
Central Floor Panel | 18 mm fire-resistant magnesium oxide board |
Side Floor Panels | 18 mm fire-resistant magnesium oxide board |
Floor Finish | 4.0 mm stone-plastic (SPC) floor |
Entrance Door | Thermal-break aluminum entrance door ×1 |
Bedroom Door | Steel doors ×2 |
Windows | Standard uPVC sliding windows; 930 × 930 mm × 8 |
Electrical System | |
|---|---|
Breaker System | 1 residual-current breaker + 4 circuit breakers |
Lights | LED round ceiling lights / recessed lights |
Sockets | As required |
Switches | Double-pole / single-key switches |
Wiring | Incoming 6 mm²; water-heater 6 mm²; kitchen sockets 4 mm²; AC sockets 4 mm²; general sockets 2.5 mm²; lighting 1.5 mm² |
Kitchen and Bathroom | |
|---|---|
Kitchen | Standard L-shaped kitchen cabinet |

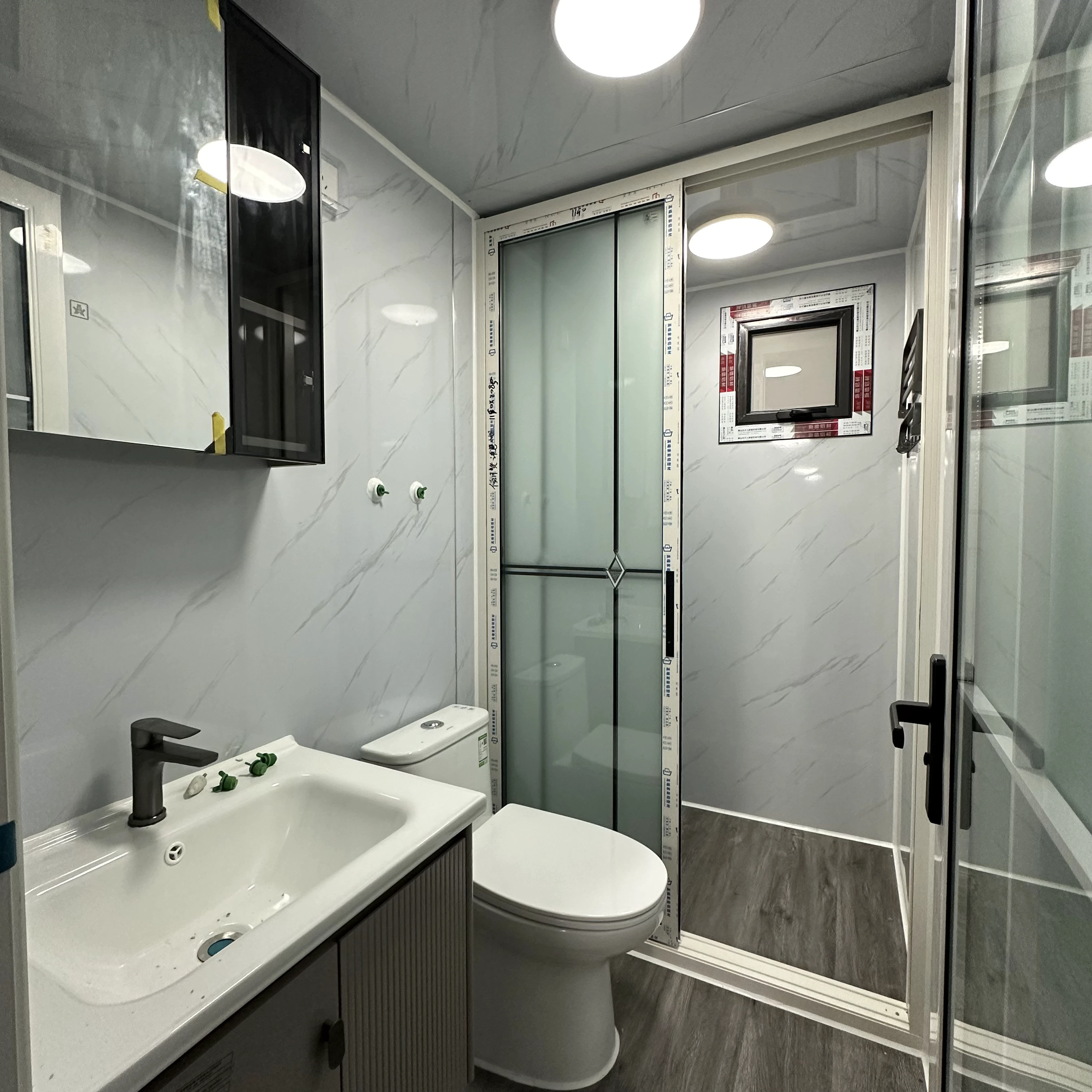

Bathroom | Partition, shower set, wash basin, toilet, mirror/cabinet, sliding shower door, floor drain, and water inlet/outlet pipes |
Customizable Floor Plans
Partition positions, door/window locations, and kitchen & bathroom zones can all be customized to your drawings. Contact us with your target layout for a free plan check and quote.
Applications
Dealers & Distributors
Regional resale stock and project tender supply.
EPC & Construction Teams
Worker accommodation and on-site project management offices.
Hotel Operators
Glamping extensions, staff dormitories, and seasonal capacity.
Public Sector Buyers
Community temporary housing and emergency planning.
Relief & NGO Projects
Rapid-deploy shelters and support camps.
Commercial Operators
Pop-up service rooms, kiosks, training spaces, and site offices.
Private Owners
Backyard granny flats, rental units, home offices, and compact living.
Project Coordination
We coordinate modular housing sourcing with suitable supplier resources and provide product information for international projects. Share your target layout, local requirements, and delivery destination for a tailored recommendation.
10 / 20 / 30 / 40 ft
Size Options
19.1–72 m²
Reference Floor Areas
12 kW
Standard Electrical Load
On Request
Technical Documents
